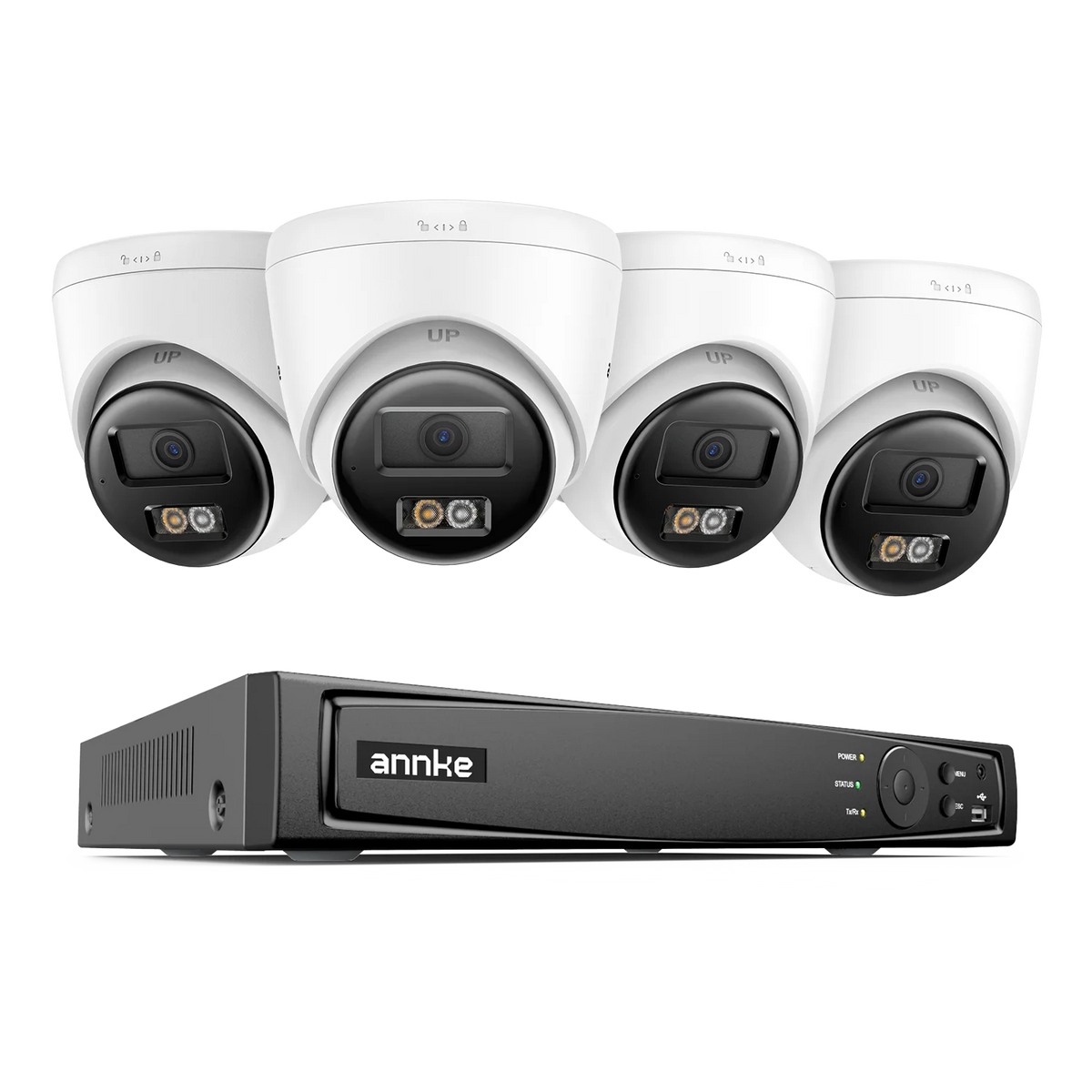

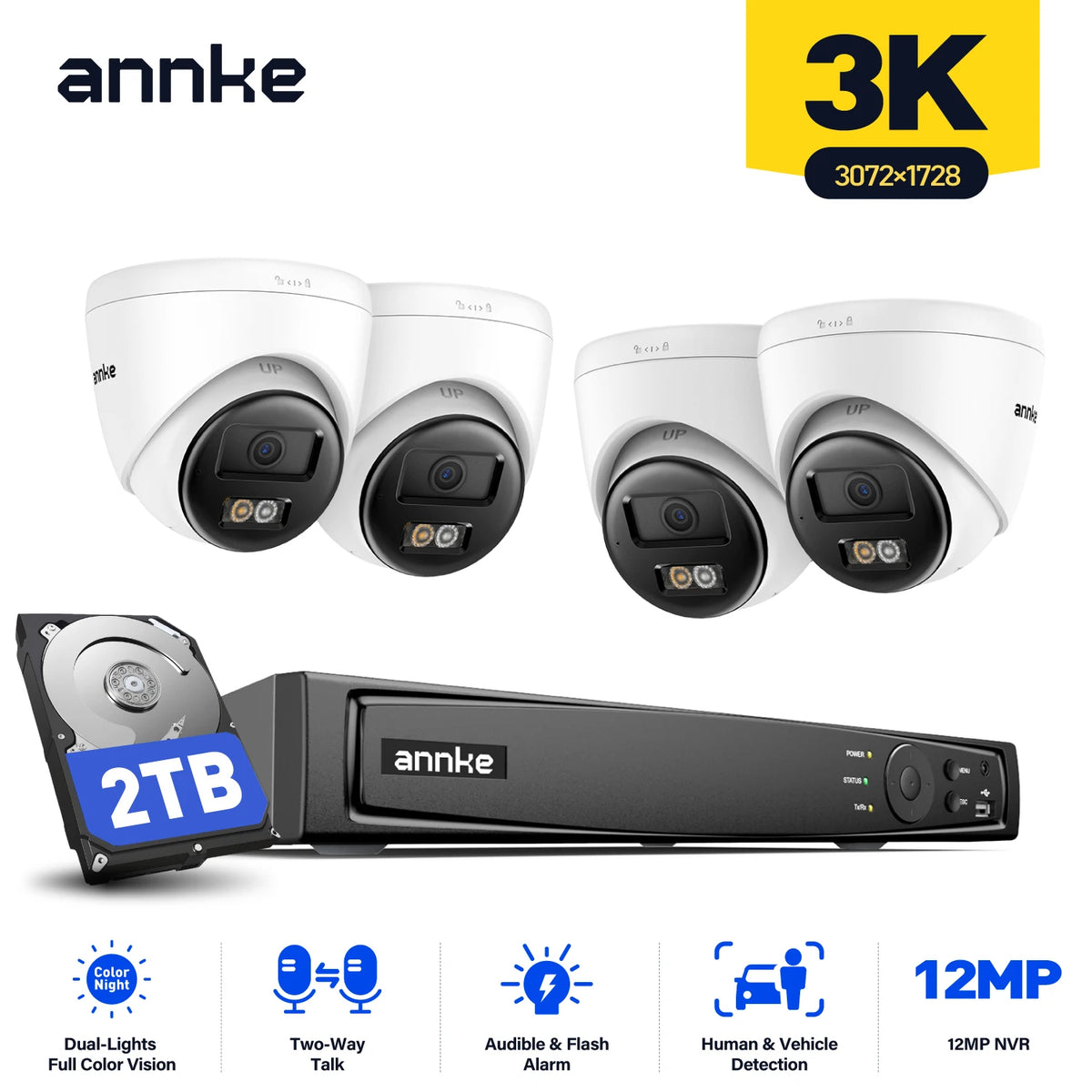

ANNKE 3K Dual Light PoE Security Camera System With NVR
ANNKE 3K Dual Light PoE Security Camera System With NVR
Couldn't load pickup availability
Keep a closer eye on your home or property with 3K video, wide-angle coverage, and remote access through an NVR security system.

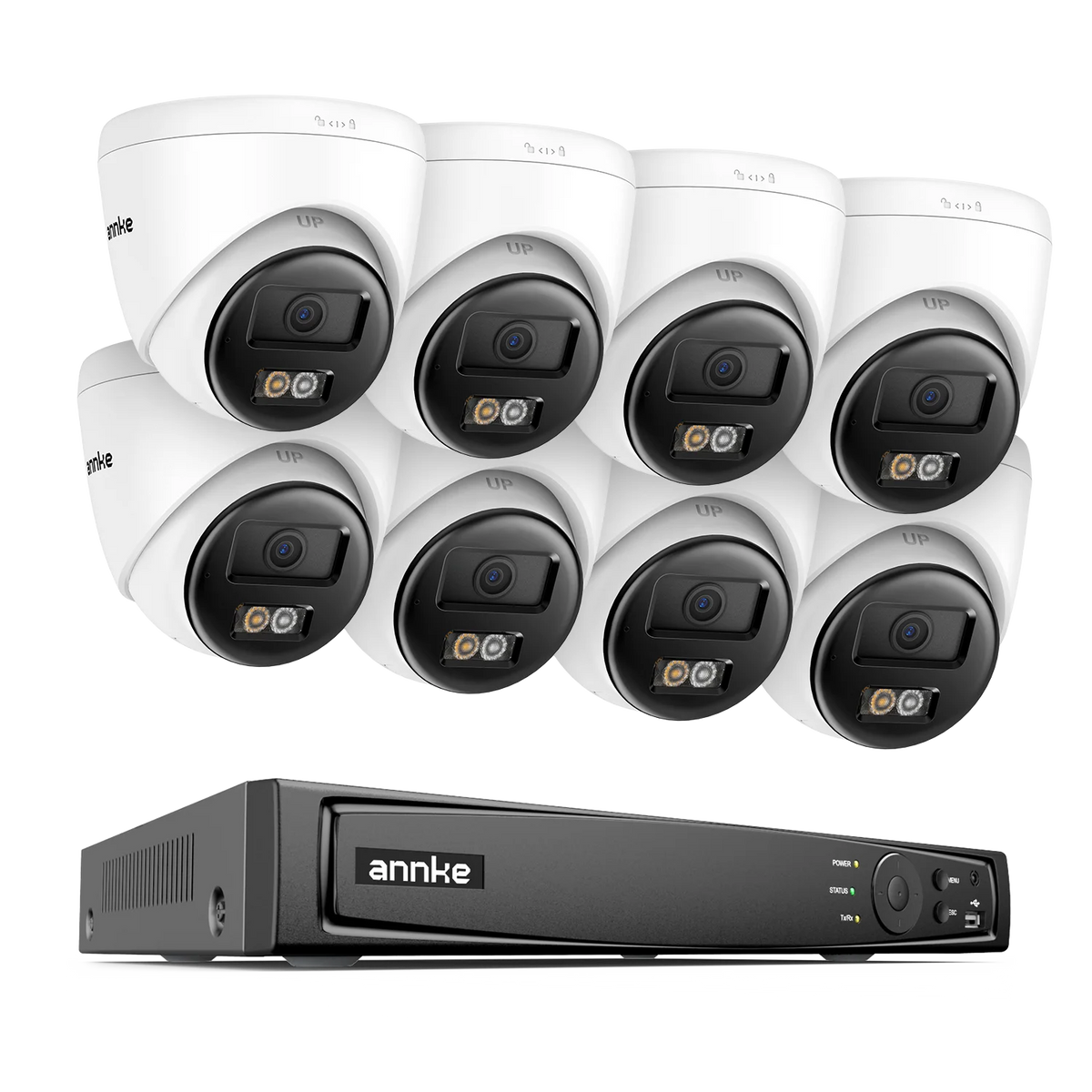

- Wide camera view: Choose a 4- or 8-camera setup; each camera captures 3K video with a 123° diagonal field of view, helping you see more of each scene.
- Smarter night monitoring: Smart dual-light shifts from infrared to white light when a moving target appears, while human and vehicle detection helps reduce unwanted alerts.
- Talk and listen remotely: Built-in two-way audio lets you communicate through the cameras, and ANNKE Vision gives you remote viewing on iPhone, iPad, or Android.
- Flexible NVR recording: The 8-channel NVR supports playback up to 12 MP, HDMI output up to 4K, H.265+ compression to save storage space, and an HDD up to 8 TB; the listed cable length is 18 m.
NVR | ||
Video & Audio |
Decoding Format |
H.264+/H.264/H.265/H.265+ |
IP Video Input |
8CH PoE |
|
Video Output |
HDMI up to 4K (3840 × 2160), VGA up to 1080p(1920 × 1080) |
|
Audio Input/Output |
1/1 RCA |
|
Incoming/outgoing Bandwidth |
80/80 Mbps |
|
Max Recording Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Resolution |
Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
|
Max Playback Channel |
8CH |
|
Max Playback Capacity |
1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |
|
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 8 TB Capacity |
|
External Interface |
Network Interface |
1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
PoE |
8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
|
USB interface |
USB 2.0*2 |
|
Smart Function |
Deep learning |
8-ch Human and vehicle targets detection(Need IP camera support) |
4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) | ||
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting |
|
General |
Operating Power |
DC 48 V |
Power Consumption |
≤10 W (Without HDD and PoE) |
|
PoE: Max 25.5 W for Single Port | ||
Working Temperature |
14 °F ~ 131 °F/-10 °C ~+55 °C |
|
Dimensions (W X H X D) |
12.4” X 9.4” X 1.9”/315 X 240 X 48 mm |
|
Weight (Without Hard Disk) |
2.2 lbs/1 kg |
|
Model Number |
I51HJ |
|
IP Camera | ||
Camera |
Image Sensor |
1/2.8" Progressive Scan CMOS |
Max resolution |
3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display |
|
Main Stream |
50 Hz: 20 fps (3072*1728, 2560 X 1440), 25 fps(1920 X 1080) |
|
Substream |
50 Hz: 20 fps (1280 X 720,640 X 480, 640 X 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
256 Kbps - 8 Mbps |
|
Audio Compression |
G.711ulaw/AAC |
|
Audio Input |
Built-in microphone, record with audio |
|
Audio Output |
Built-in Speaker, max. sound pressure level: 10 cm: 95 dB |
|
Lens |
2.8 mm |
|
Min. Illumination |
Color: 0.01 Lux, B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123° |
|
Supplement Light Type |
Smart Dual-Light, IR Light, White Light |
|
Supplement Light Range |
IR: up to 30 m, wite Light: up to 30 m |
|
Motion Detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Flashing Light |
White Light |
|
Flashing Light Alarm |
High/Medium/Low Frequency/Normally On |
|
Audio Alarm |
Warning Sound/Prompt/Custom Audio |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, DDNS, SNMP |
|
API |
Open Network Video Interface Version 19.12 |
|
Privacy Mask |
1 programmable polygon privacy mask |
|
General Function |
Mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |
Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |
DC 12 V± 25%, max. 7.5 W; PoE (802.3af), max. 9 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |
IP67 |
|
Dimension (L X W X H) |
Ø110 mm × 89.2 mm (Ø4.3" × 3.5") |
|
Weight |
Approx. 350 g (0.7 lb.) |
|
